Remote Mini - For DIY Users: Open Source Project

For DIY Users: Open Source Project

[https://github.com/brian0726/Film-Oddments-_-Remote-Mini-DIY]

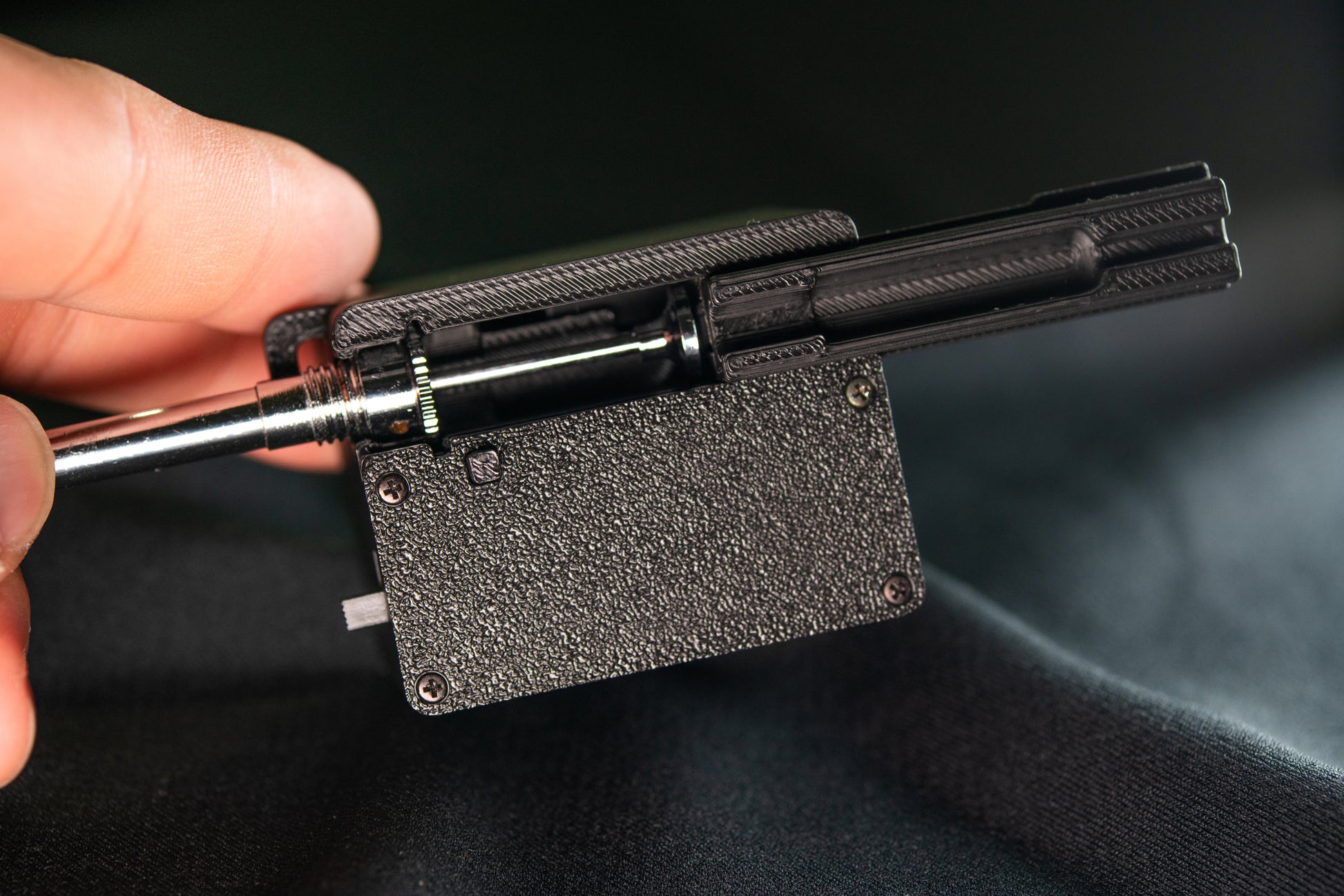

Remote Mini release swap guide:

[https://youtu.be/MaVnfIBbx1U]

Remote Mini Assembly Guide:

[https://youtu.be/KrDAGnrWniE]

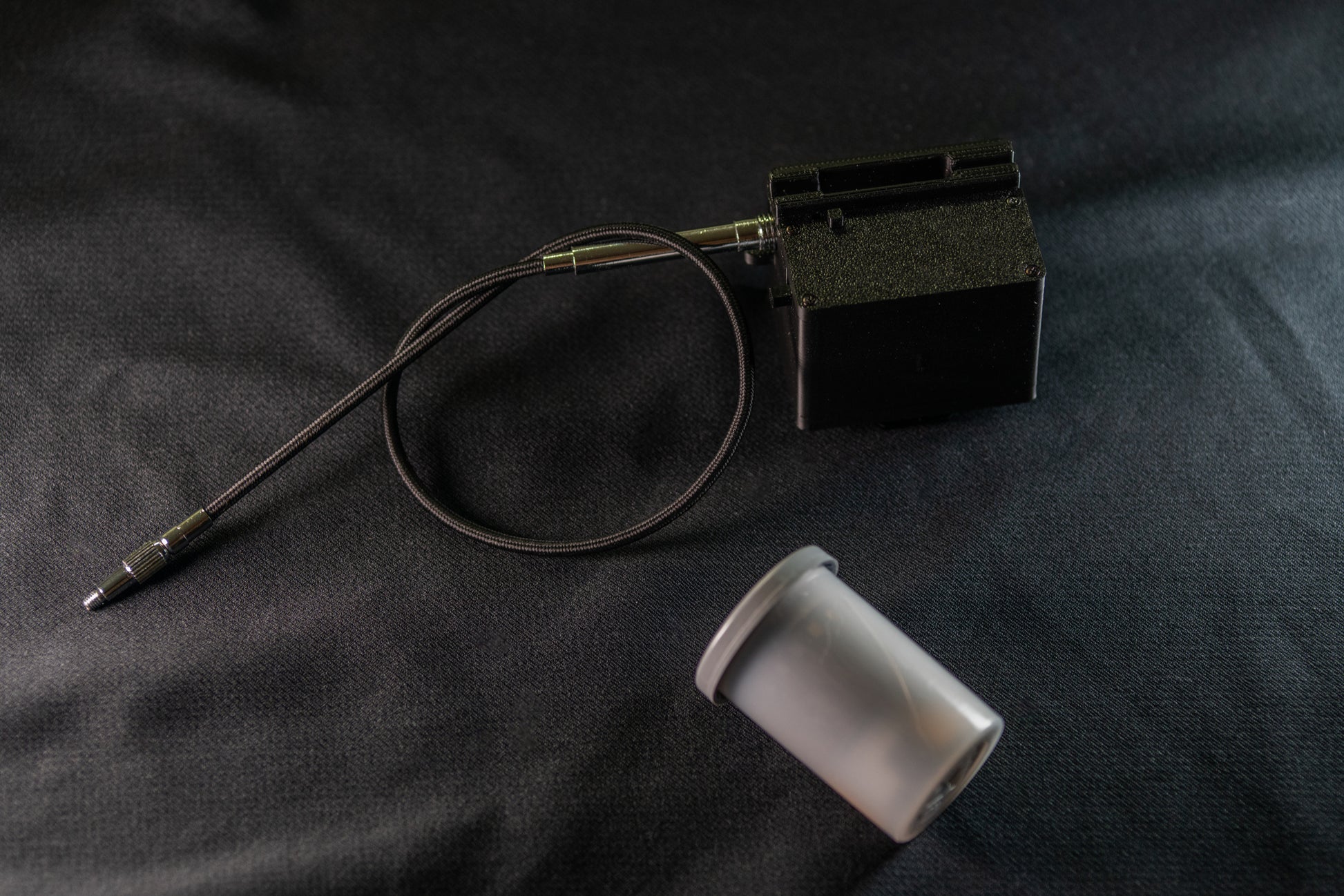

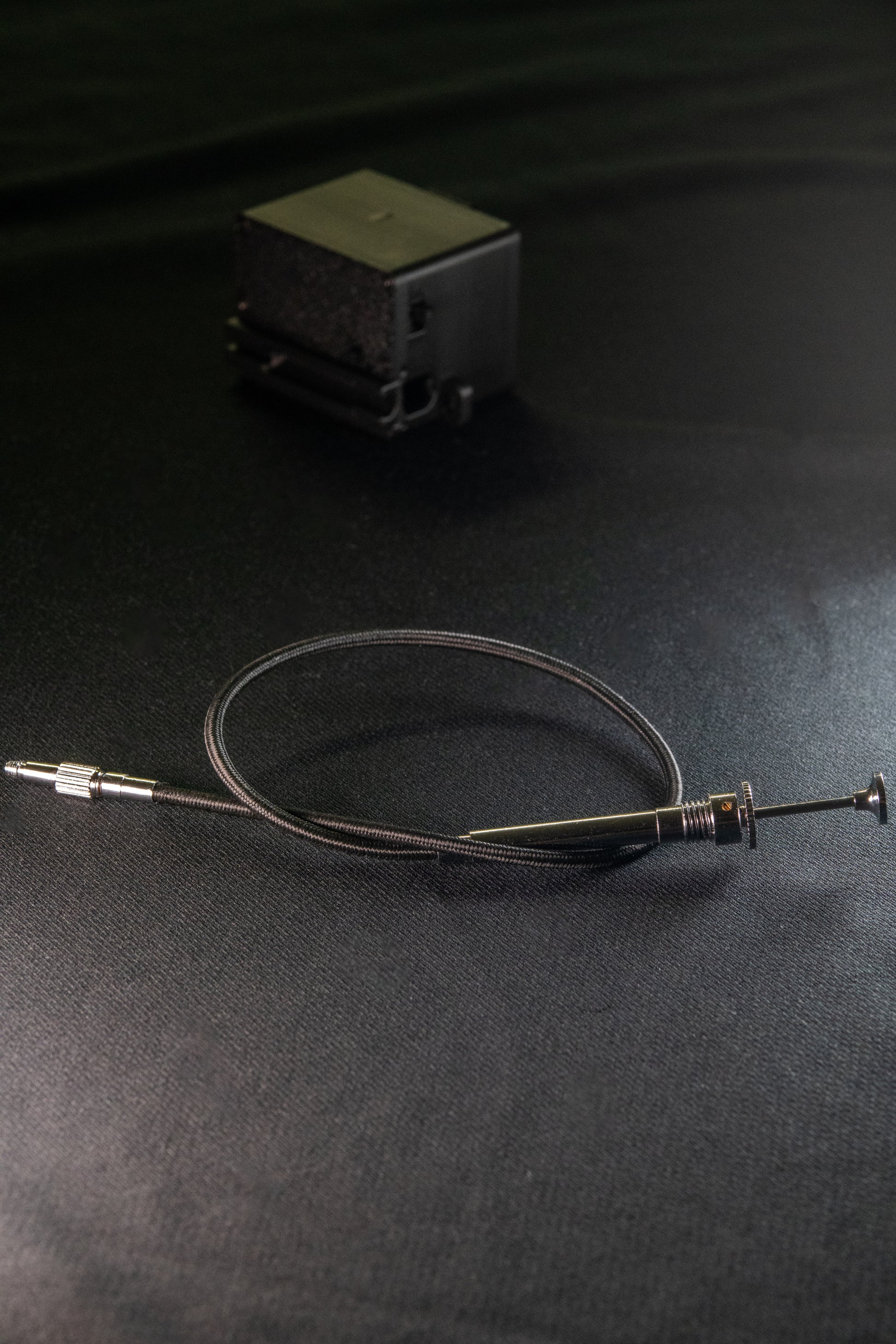

Bluetooth Remote Shutter Release

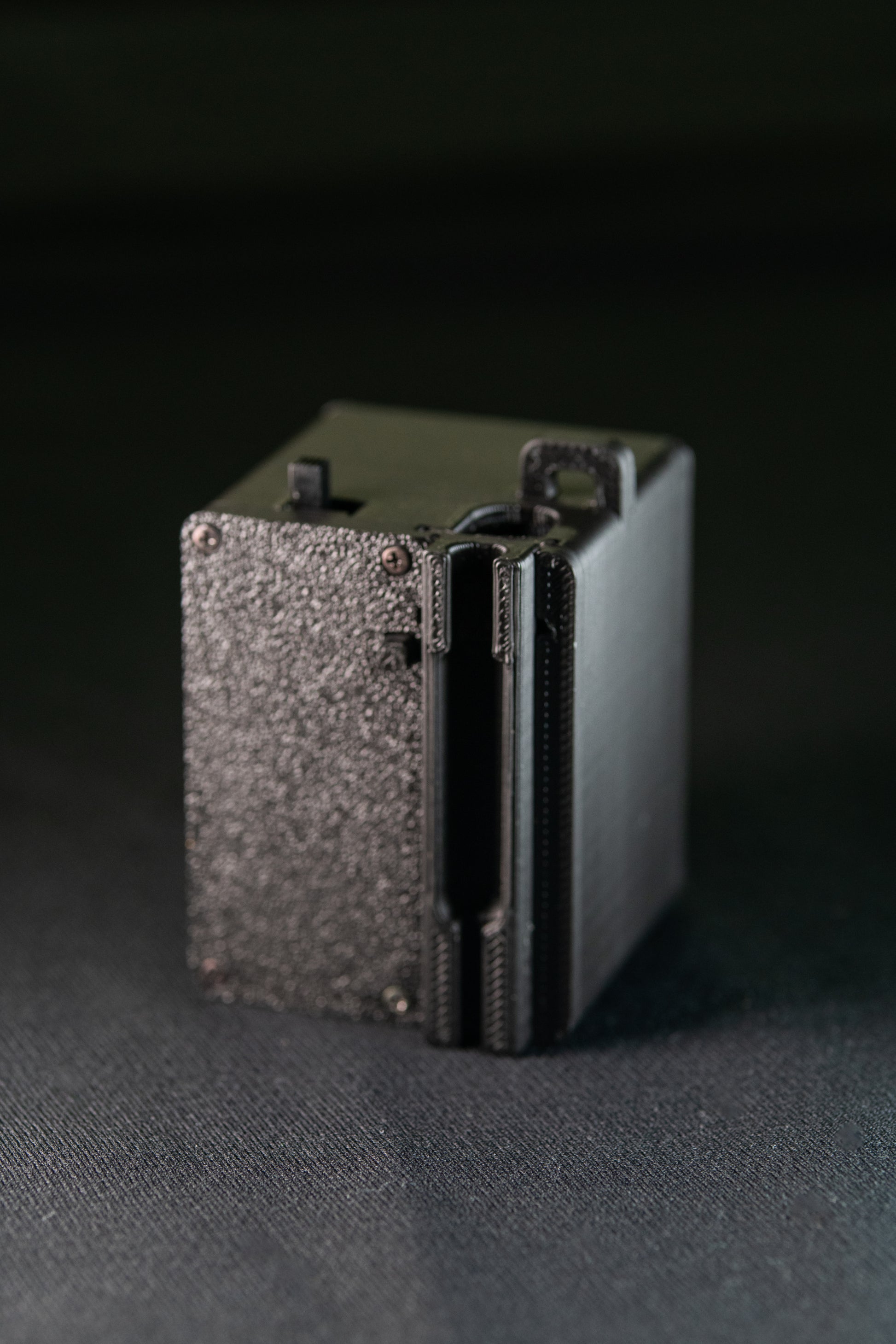

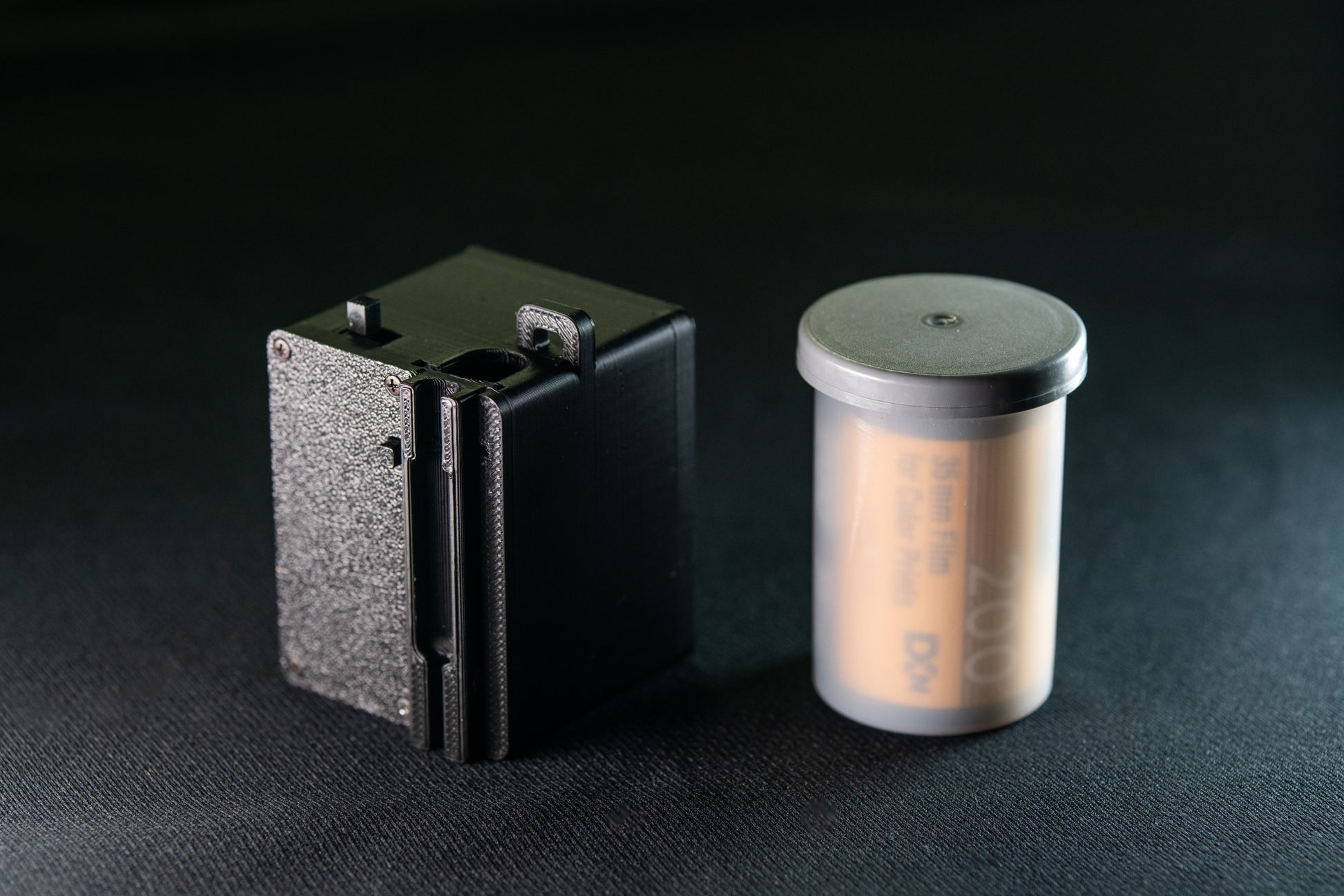

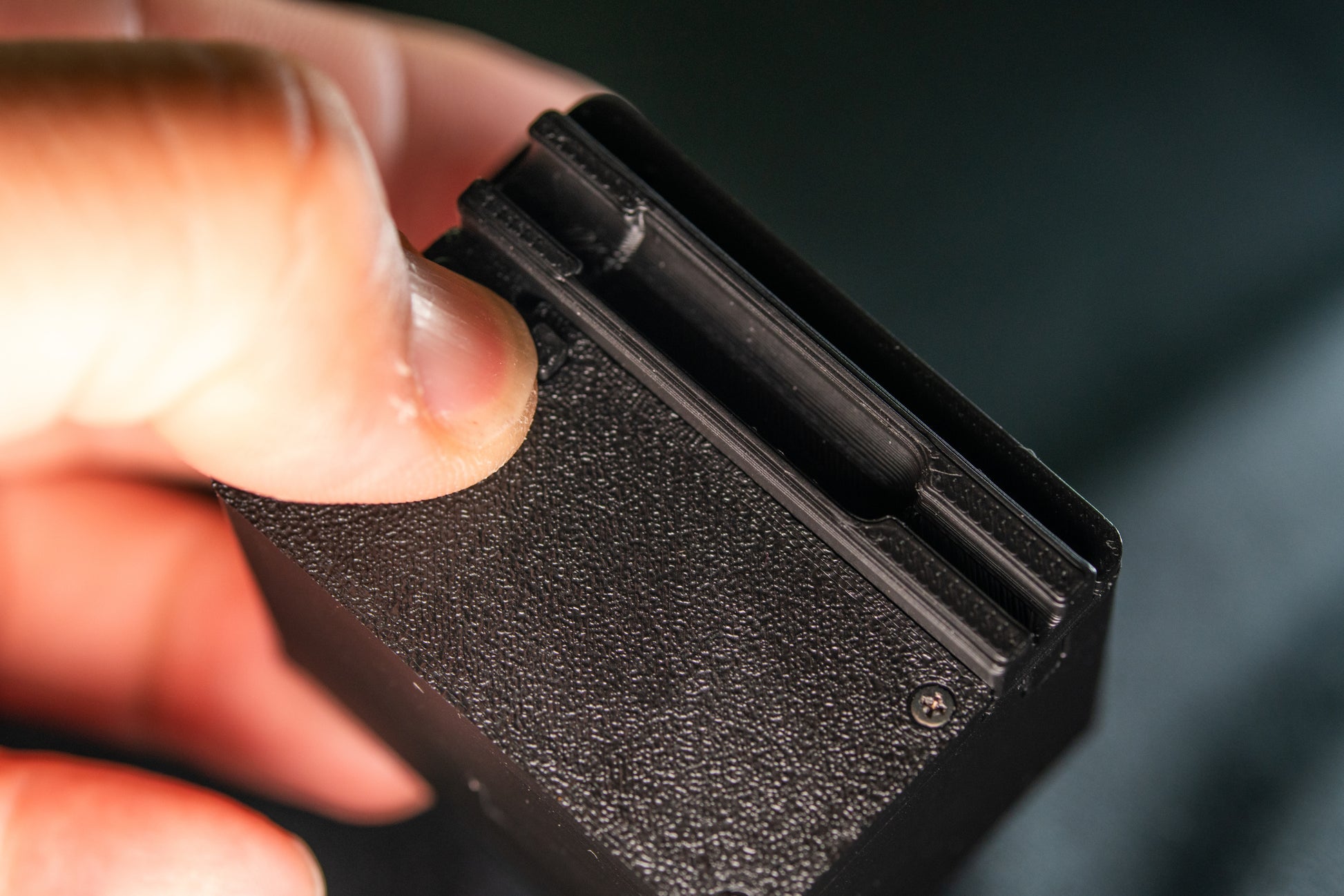

This is our latest version. We've made it smaller and more compact by incorporating feedback from the large version.

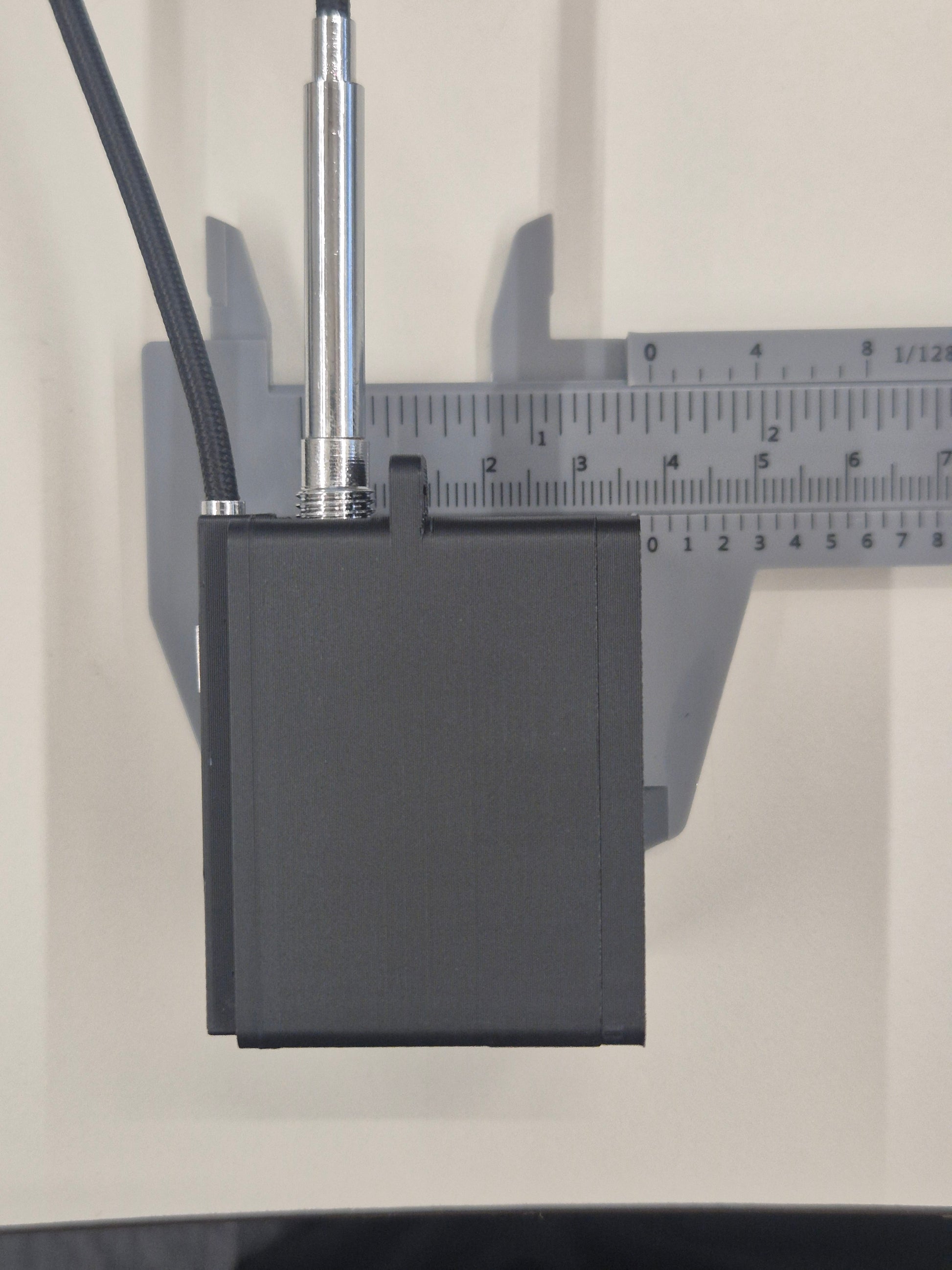

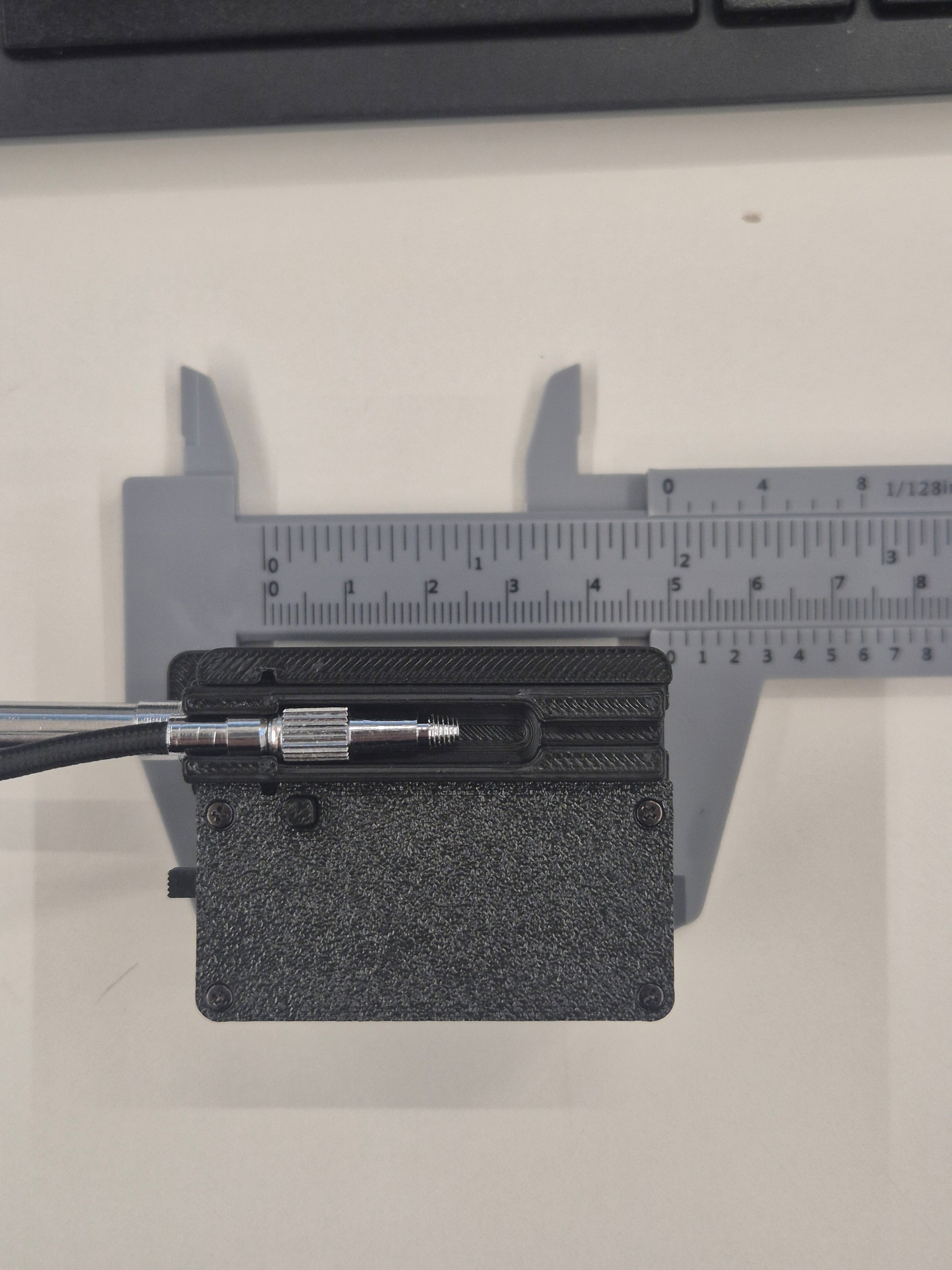

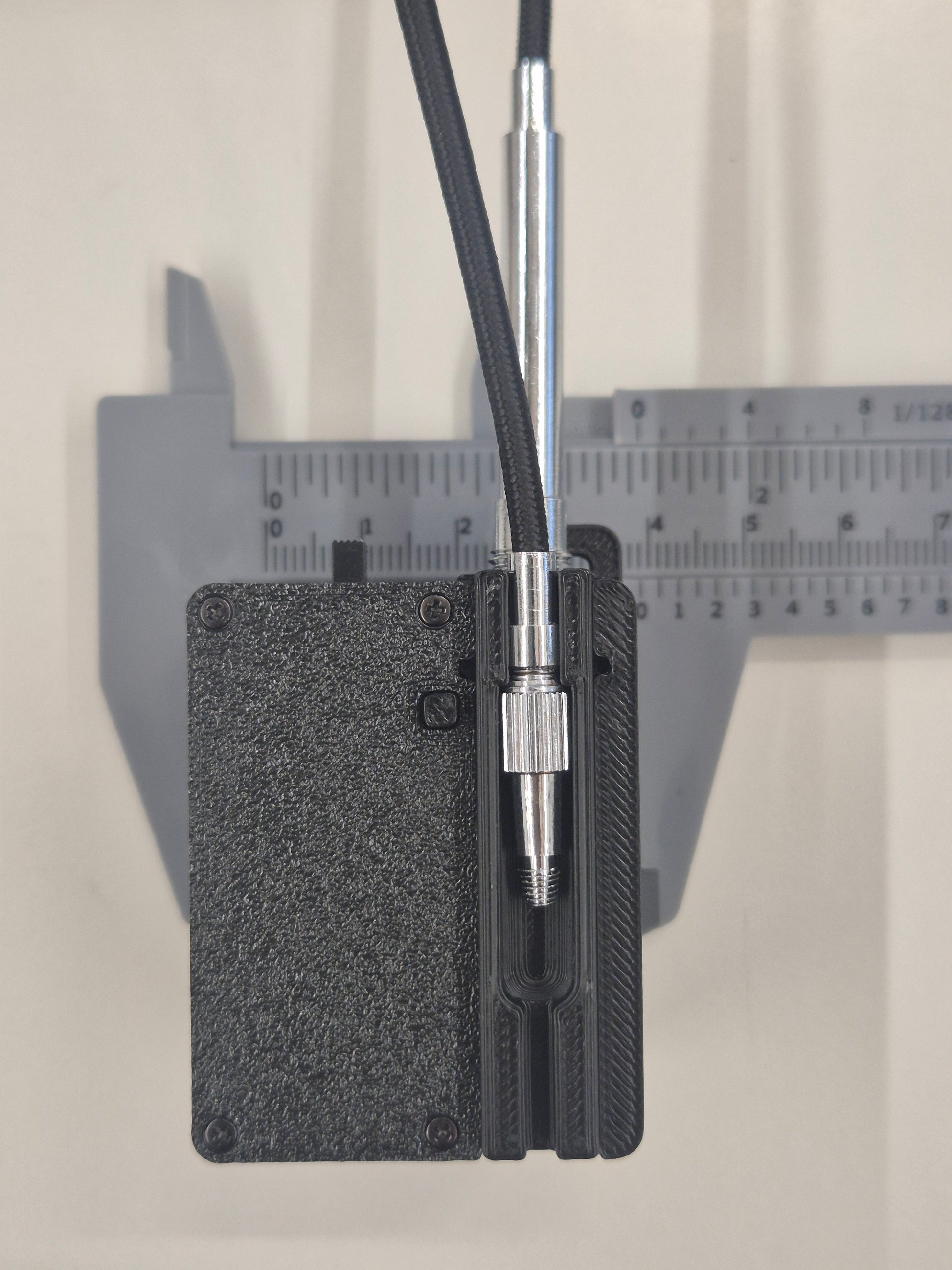

size: W48mm x D39mm x H38mm

Current Features:

• Shutter Trigger – Instantly capture photos with a press of a button.
• Bulb Mode – Keep the shutter open for long exposure shots.
• Timer Mode – Set a timer for hands-free shooting.
• Timed Bulb Mode – Automatically control long exposures with a preset timer.
• Shutter Depth Adjustment – Fine-tune the press depth for half-press and full-press functionality.

• Manual release

-------------------

⚠️ Important: In-App Purchase Required

Please note that this is for the physical hardware of the remote shutter release only.
To control the hardware, you will need to use our companion mobile app and unlock the Remote Release Activation via in-app purchase.

You can download the companion app here:

• For iOS
• For Android

In-app purchased price down !

In-app purchase price for Remote Release Activation: $10.99

In-app purchase price for Remote Release Activation: $25 - OLD PRICE

-------------------

For DIY Users: Open Source Project

PLEASE READ THE FOLLOWING TERMS CAREFULLY.

This is not a commercial product for sale. This page is intended for DIY users who wish to build this device themselves. You are responsible for 3D printing the parts and assembling the final product.

The 3D printing files and Arduino code for the Remote Mini are available for download from the GitHub repository linked below. Circuit diagrams can be found on this page and within the GitHub repository.

[https://github.com/brian0726/Film-Oddments-_-Remote-Mini-DYI]

License and Intellectual Property

The design, schematics, and Arduino code for this product are the intellectual property of Film Oddments. They are made available under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License (CC BY-NC-ND 4.0).

This means you are free to share (copy and redistribute) the material in any medium or format for non-commercial purposes, under the following terms:

• Attribution — You must give appropriate credit to Film Oddments.
• NonCommercial — You may not use the material for commercial purposes.
• NoDerivatives — If you remix, transform, or build upon the material, you may not distribute the modified material.

Any unauthorized modification, distribution, or commercial use beyond the scope of this license is strictly prohibited.

Disclaimer of Warranty and Limitation of Liability

The hardware designs, software, and all related files are provided "AS IS", without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose, and noninfringement.

In no event shall Film Oddments be liable for any claim, damages, or other liability, whether in an action of contract, tort, or otherwise, arising from, out of, or in connection with the assembly, use, or other dealings in the hardware or software. This includes, but is not limited to, any safety accidents, equipment damage, or personal injury. The entire risk as to the quality and performance of the project is with you.

By downloading, accessing, or using the provided files (drawings, code, etc.) and assembling the device, you acknowledge and agree to be bound by all the terms and conditions stated above.

-------------------

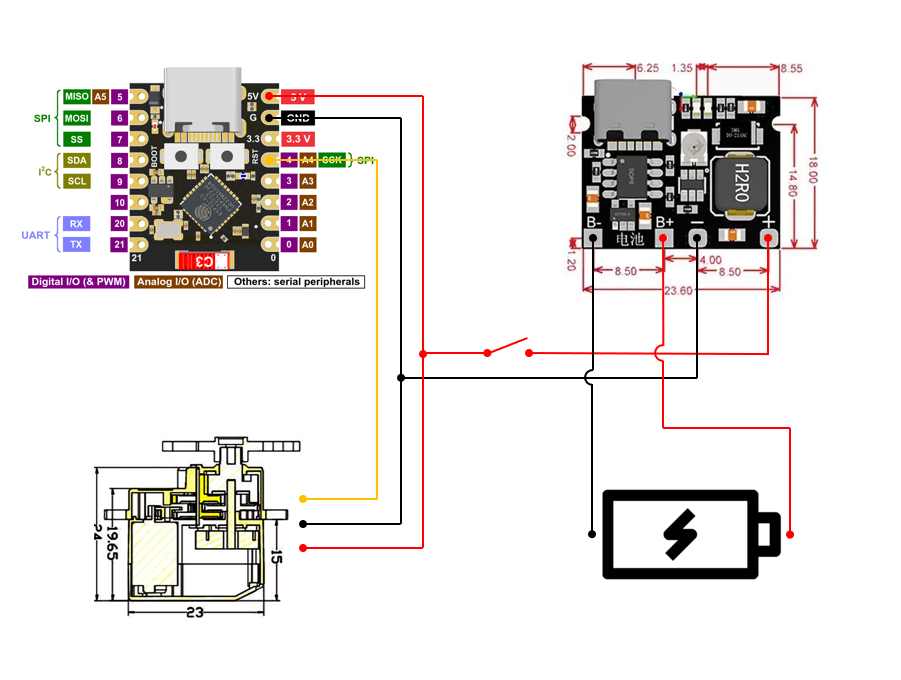

Circuit Diagram & Bill of Materials (BOM)

Below is the list of components required to build the Remote Mini.
